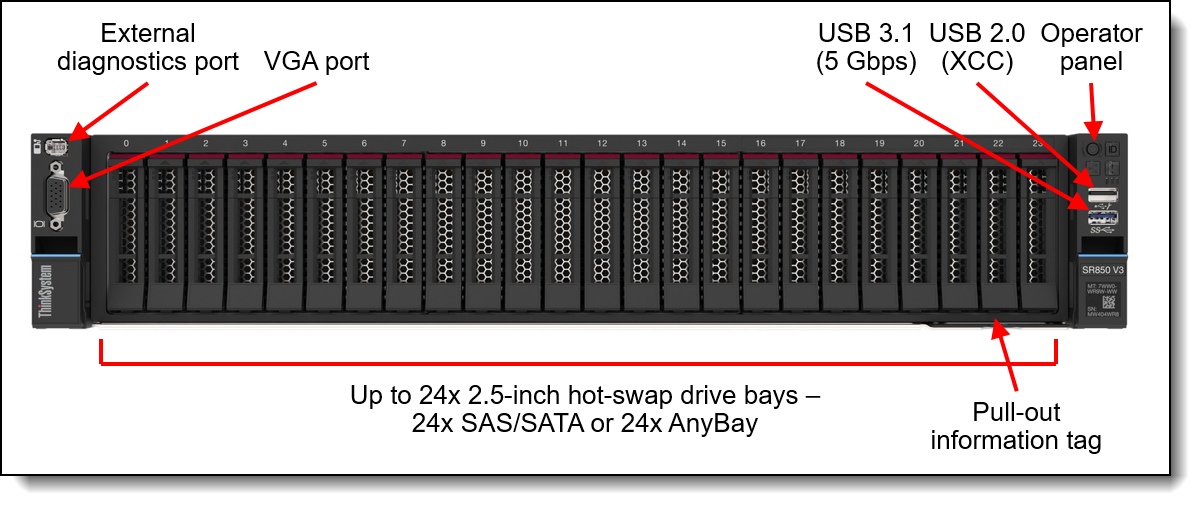

Figure 2. Front view of the ThinkSystem SR850 V3The following figure shows the rear of the server.

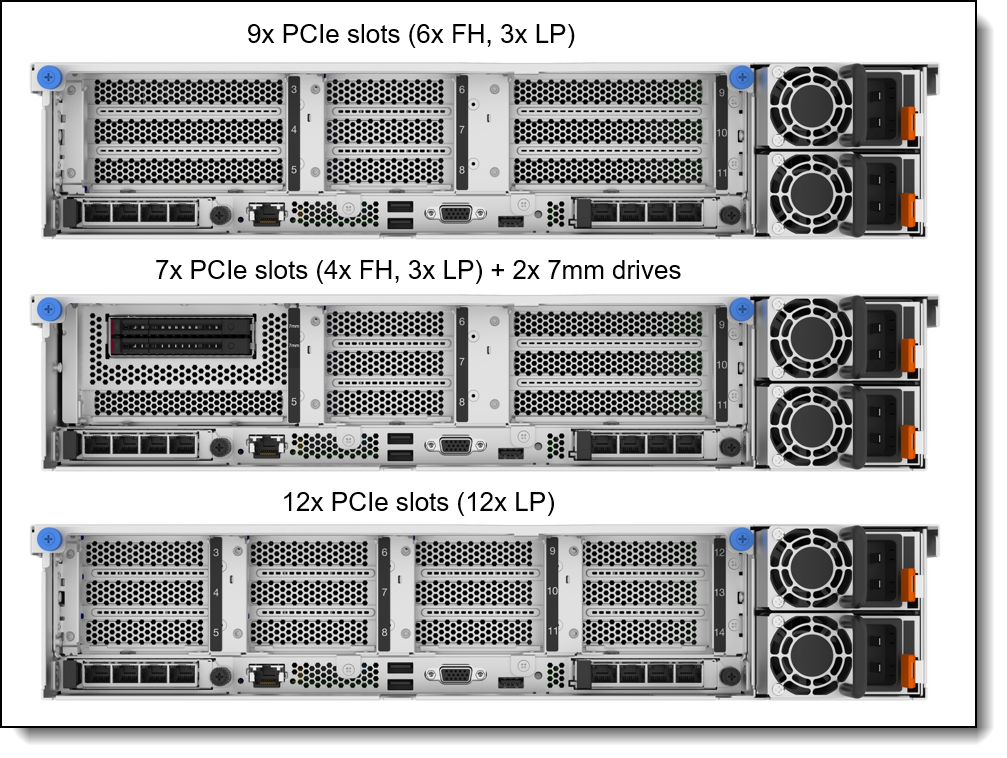

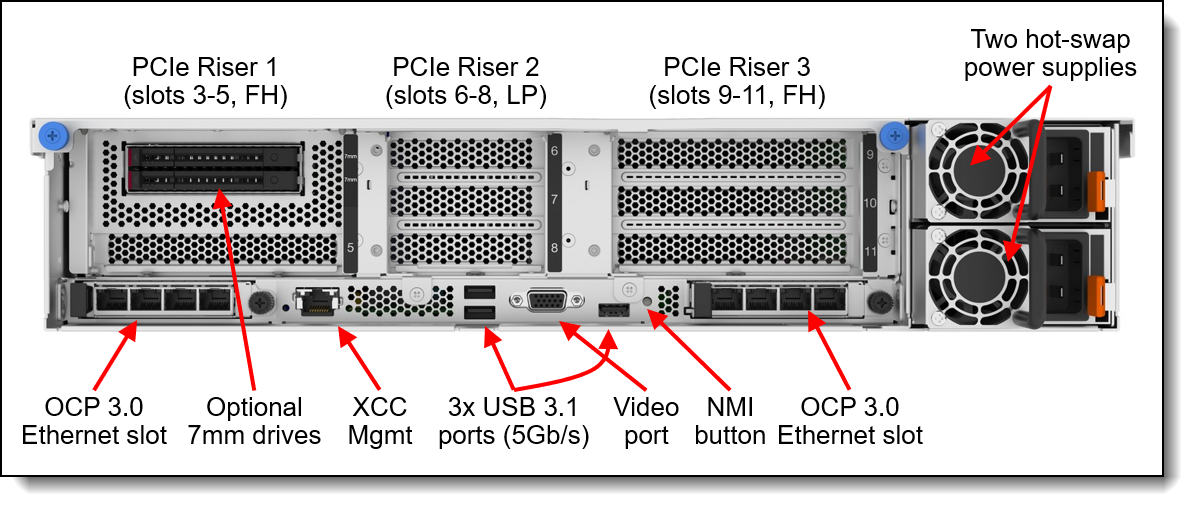

Figure 3. Rear view of the ThinkSystem SR850 V3The SR850 V3 supports four risers with all low-profile slots, or three risers with a mix of full-height and low-profile slots. The later also supports 7mm drives in the place of two of the slots. The following figure shows all three slot configurations.

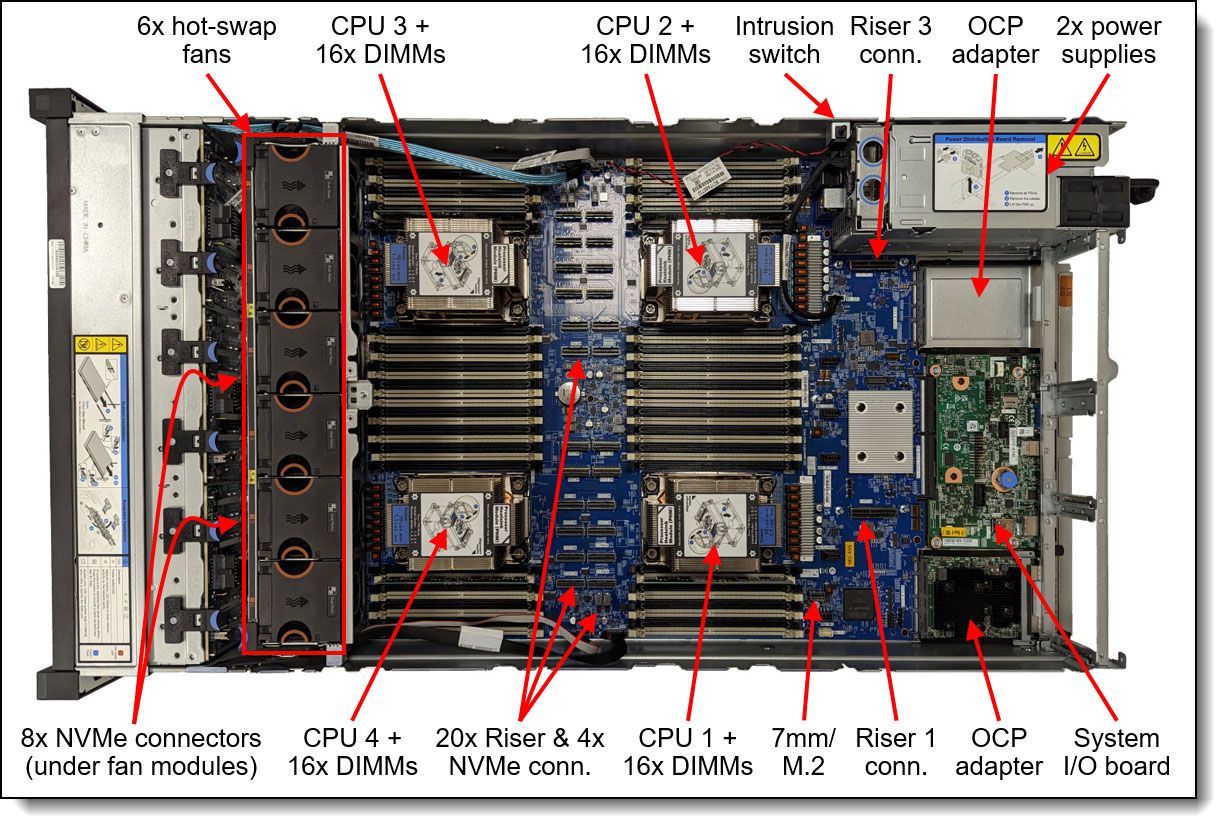

Figure 4. Slot combinations of the ThinkSystem SR850 V3The following figure shows the locations of key components inside the server.

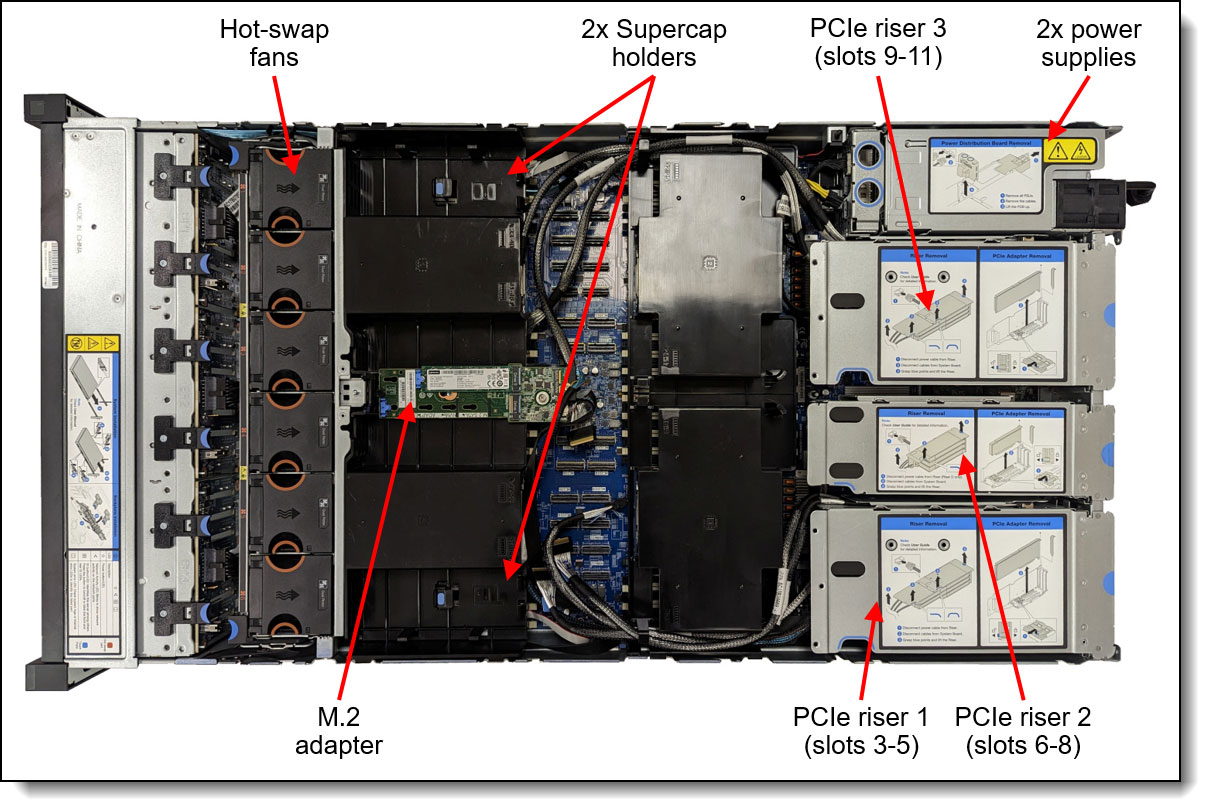

Figure 5. Internal view of the SR850 V3The following figure shows the inside the server with the air baffles and PCIe risers installed. It also shows the M.2 adapter installed and the location of the RAID adapter supercaps.

Figure 6. Internal view of the SR850 V3 with M.2 and risers installed

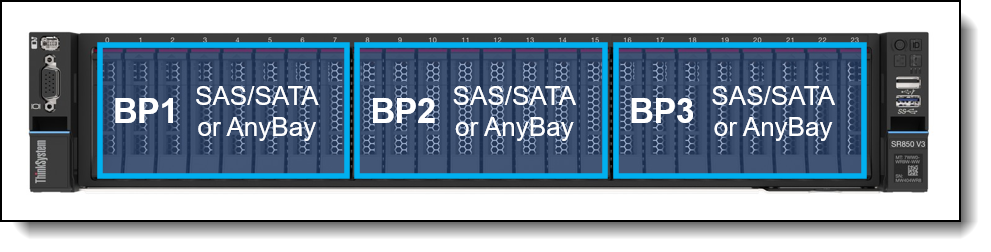

Figure 7. Backplanes

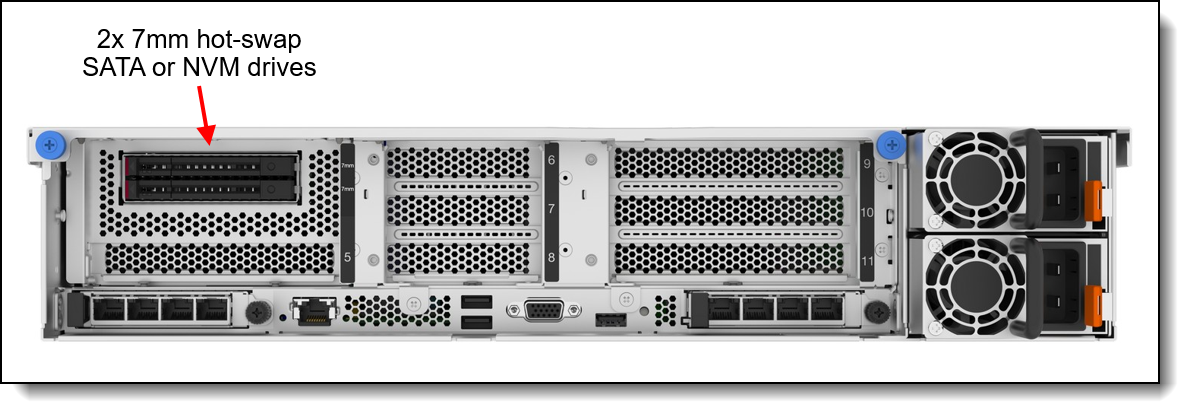

Figure 8. 7mm drive bays

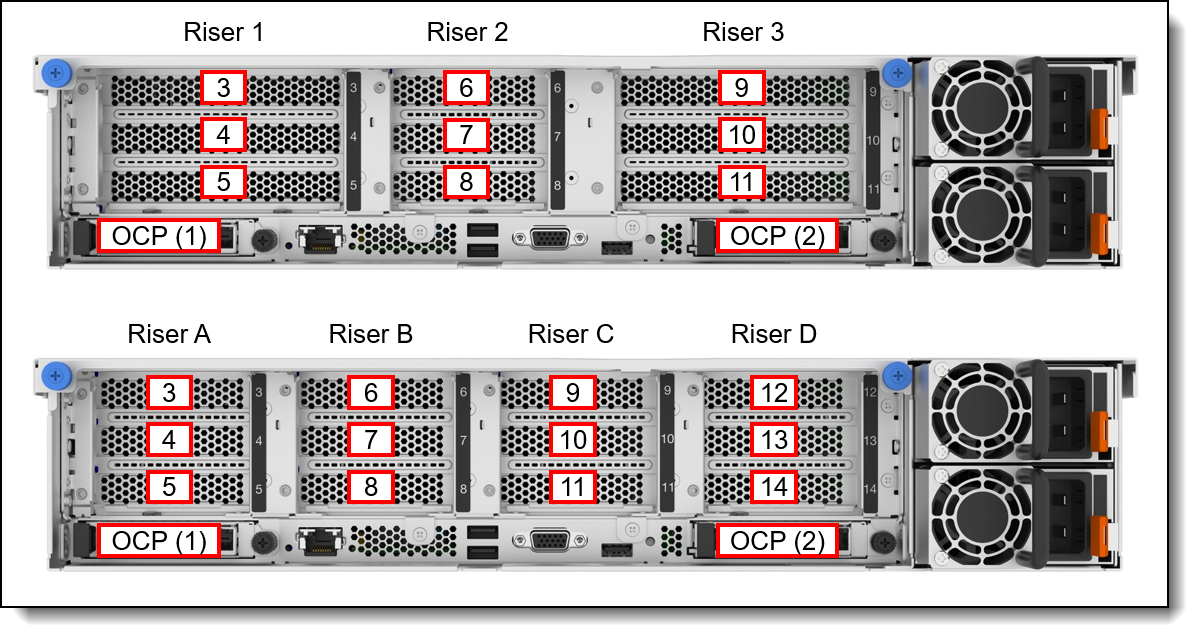

Figure 9. Slots in the SR850 V3

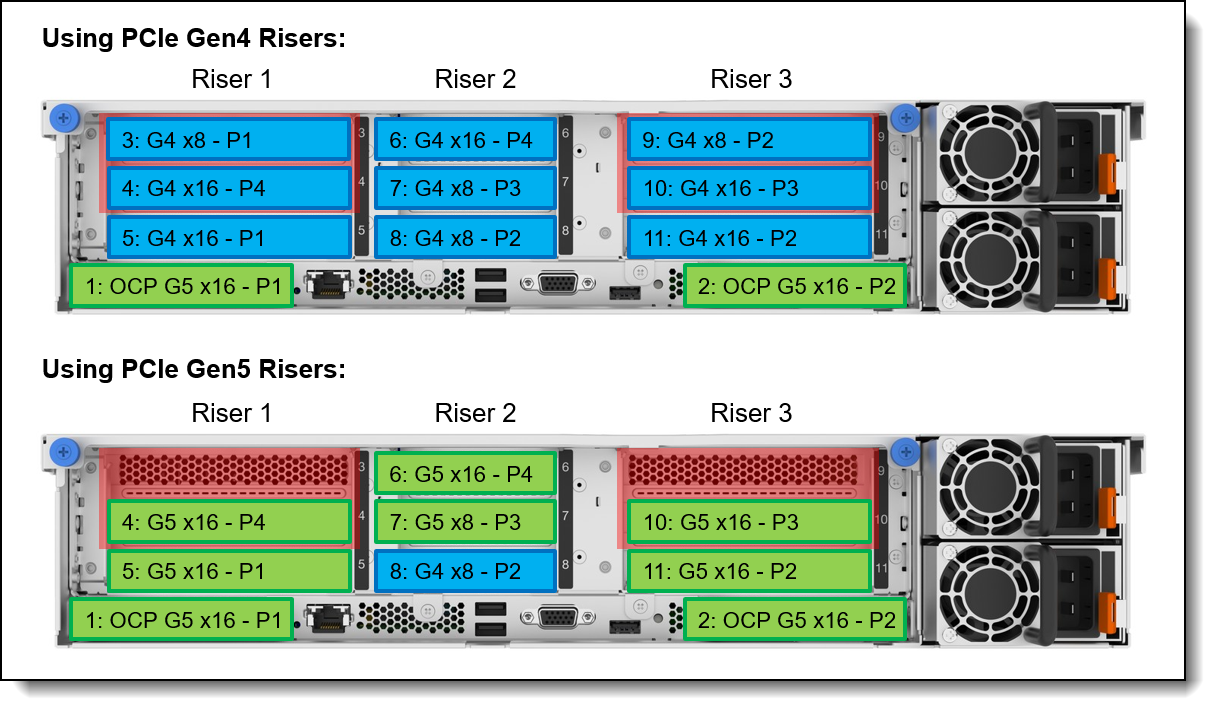

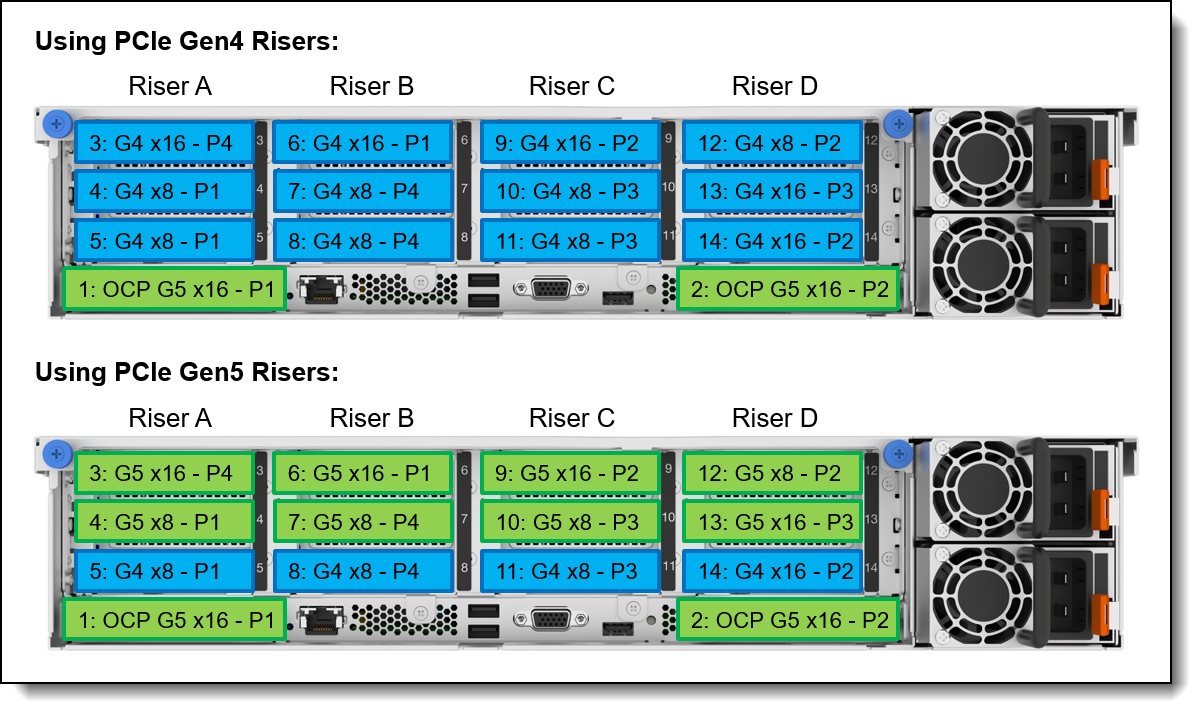

Figure 10. SR850 V3 with 12x Low Profile slots + 2x OCP slots (blue slots are Gen4 and green slots are Gen5)

Figure 11. SR850 V3 with 6x Full Height slots + 3x Low Profile slots (blue slots are Gen4 and greenslots are Gen5)

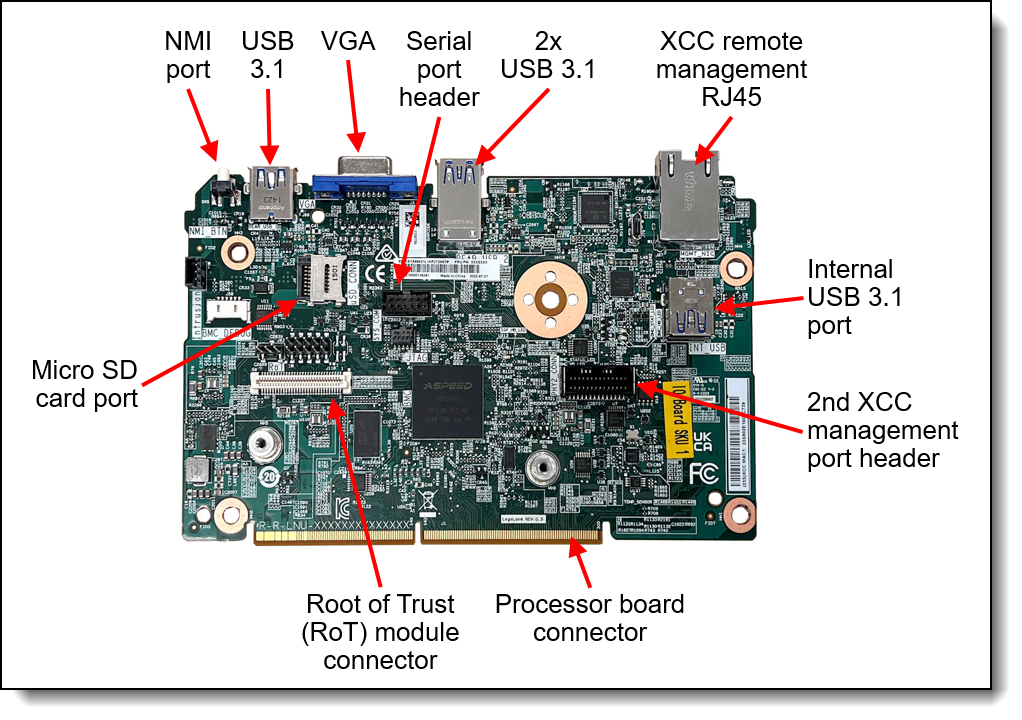

Figure 12. System I/O Board

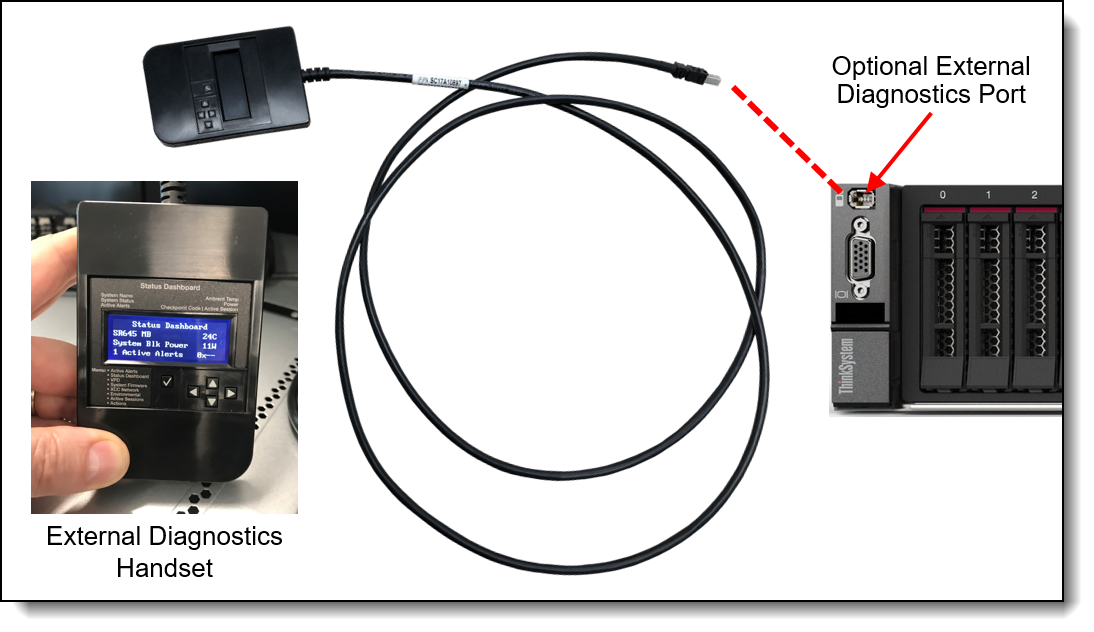

Figure 14. External Diagnostics Handset

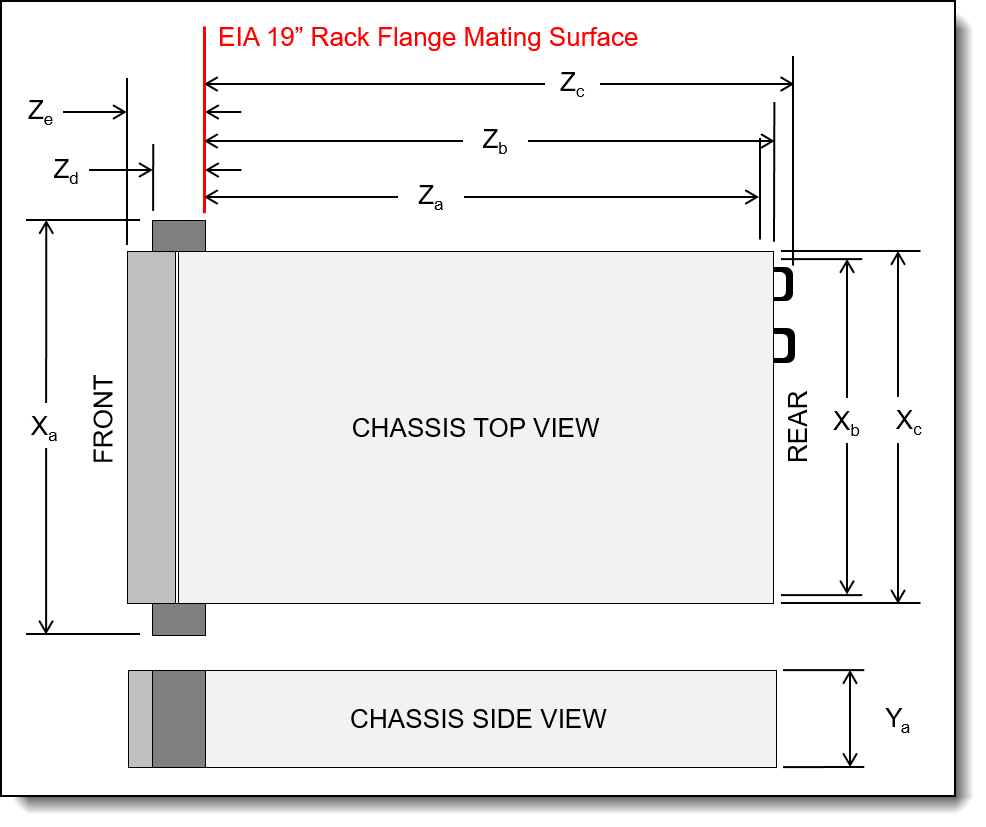

Figure 15. Server dimensions

The shipping dimensions (cardboard packaging) of the SR850 V3 are as follows:

Width: 590 mm (23.2 inches)
Height: 282 mm (11.1 inches)
Depth: 1159 mm (45.6 inches)

The server has the following weight:

Base configuration:
Maximum weight: 36.7 kg (80.9 lb)

Electrical specifications for AC input power supplies:

Input voltage:

100 to 127 (nominal) Vac, 50 Hz or 60 Hz
200 to 240 (nominal) Vac, 50 Hz or 60 Hz
180 to 300 Vdc (China only)
